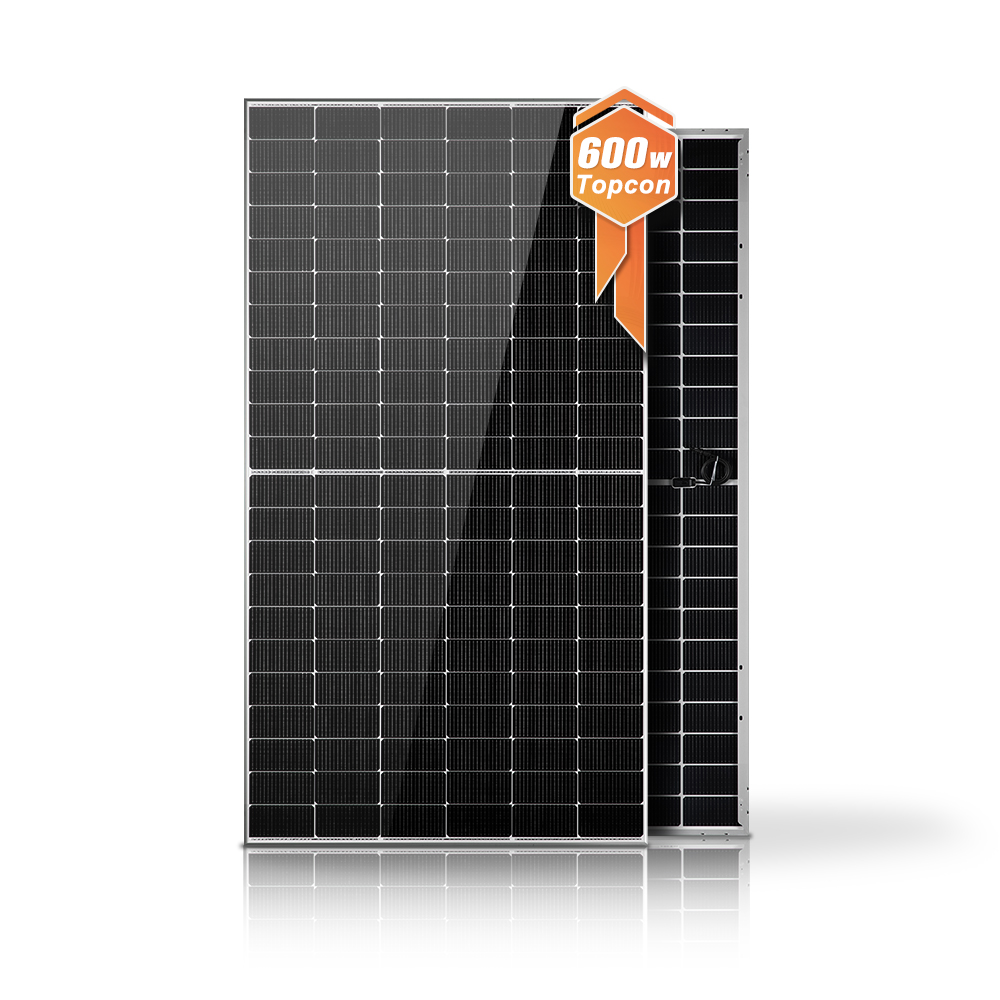

TOPCon N Type 600W Bifacial Solar Panel

Bluesun 600W Bifacial Half Cell Solar Panel, featuring the latest TOPCon N-Type technology. Designed for business applications, this panel offers an impressive efficiency of up to 23.2% and is built to withstand harsh environmental conditions, ensuring reliable performance.

Model:	BSM600M10-72HNH
Solar Cell:	N-type Topcon
Number Of Cells:	144 (6*24)
Power Range:	580-600W
Size:	2278113430MM
Certificate:	CE/TUV/UL/CEC
Payment:	T/T, L/C,Western Union
Warranty:	30 Years

INTRODUCTION

*Higher power

For the same module type, the power of N-type modules is 15~20W higher than that of P-type modules.

*Higher Bifaciality

For the same module type, the bifaciality of the N-type module is increased by 10~15% compared with the P-type module.

*Lower Temperature Coefficient

The temperature coefficient of the P-type module is -0.34%/℃

The temperature coefficient of the N-type module is optimized to -0.30%/℃.

Power generation is particularly prominent in high-temperature environments.

*Better Output Warranty

1st year <1%(P-type 2%).

30-year warranty for both monofacial and bifacial poweroutput (30 years for P-type bifacial and 25 years for P-typemonofacial).

Output power is no less than 87.4% of the initial after 30years.

SPECIFICATIONS

Module Type	BSM580M10-72HNH		BSM585M10-72HNH		BSM590M10-72HNH		BSM595M10-72HNH		BSM600M10-72HNH
Module Type	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT
Maximum Power (Pmax/W)	580	436.2	585	440	590	444	595	448	600	452
Operating Voltage (VmpM	43.28	40.05	43.48	40.1	43.68	40.15	43.88	40.2	44.08	40.25
Operating Current (lmp/A)	13.41	10.86	13.47	10.94	13.53	10.86	13.59	11.1	13.65	11.18
Open-Circuit Voltage (Voc/ V)	51.64	49.05	51.84	49.24	52.04	49.05	52.24	49.62	52.44	49.81
Short-Circuit Current (lsc/A)	14.29	11.6	14.33	11.64	14.37	11.6	14.41	11.72	14.45	11.76
Module Efficiency(%)	22.5		22.7		22.8		23		23.2
STC: Iradiance 1000W/m²,Cell Temperature 25°C, Air Mass AM1.5
