Product Introduction
The Solar Power Inverter 50kW Hybrid On-Off Grid Inverter is a versatile and high-performance solution for large-scale solar energy systems. Featuring 4 integrated MPPTs with a string current capacity of up to 20A, this inverter maximizes energy harvesting and system efficiency.
It is designed to operate seamlessly as a grid-tied inverter even without a battery connection during on-grid usage, offering flexibility and reliability. Additionally, its compatibility with a wide voltage range ensures support for various battery types, making it adaptable to diverse energy storage needs. This powerful and efficient hybrid inverter is an ideal choice for both on-grid and off-grid applications, delivering robust energy management and unparalleled performance.
Key Features
• 4 Integrated MPPTs with string current capacity of up to 20A
• Maximum charge/discharge current of up to 70A+70A on two independently controlled battery ports
• Supports peak shaving control in both “self-use” and “generator” mode
• Backup port supports 1.6 times overload for short durations
• Generator connectivity with multiple input methods and automatic generator On/Off control
• Allows parallel operation of up to 6 units for both on-grid and off-grid applications
• Support to work as grid-tied inverter without battery connection during on-grid
• Compatible with a wide voltage range to accommodate various batteries

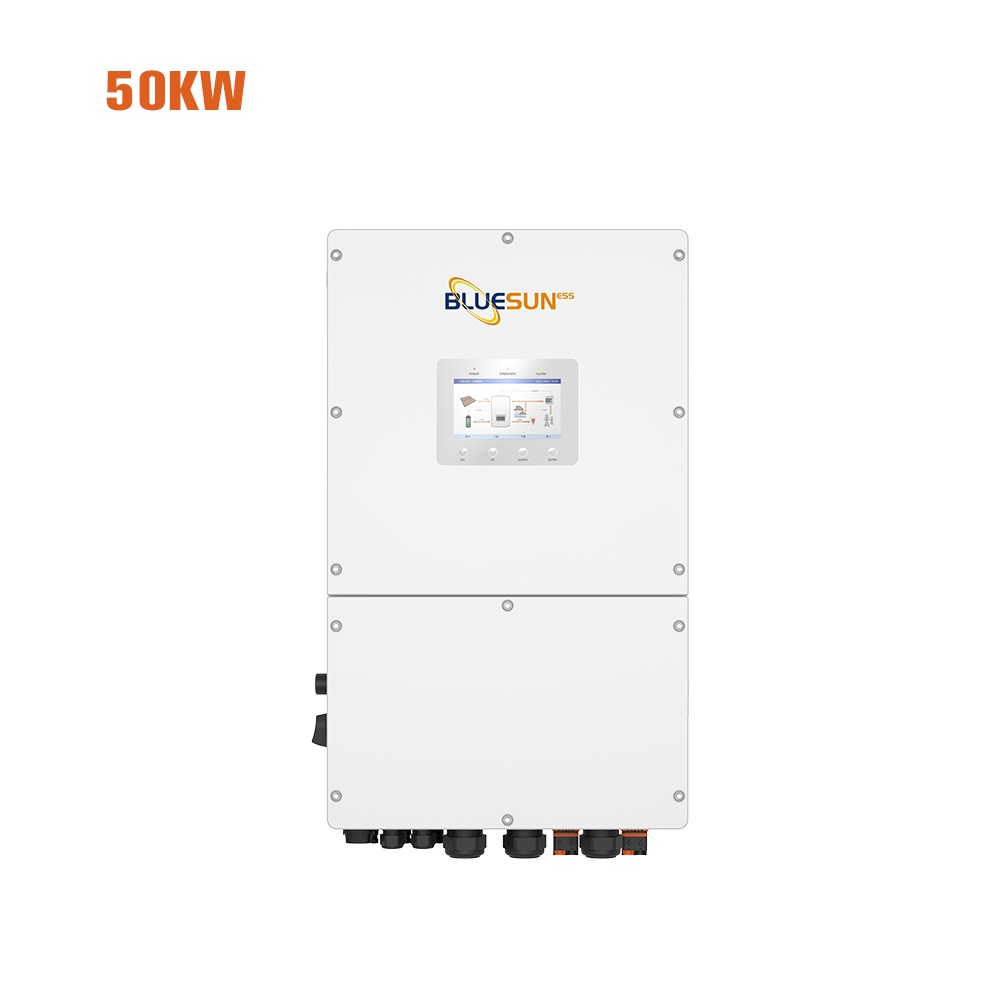

Solar Power Inverter 50kw Hybrid On-Off Grid Inverter
Basic Parameters
-
Input DC (PV side)
- Recommended max PV array size 100KW
- Max. usable PV input power 96KW
- Max. input voltage 1000V
- Rated voltage 600V
- Start-up voltage 180V
- MPPT voltage range 150-850V
- Max. input current 4*40A
- Max. short circuit current 4*60 A
- Max. input strings number 8
-
Battery
-
Output AC (Grid side)
-
Input AC (Grid side)
-
Output AC (Back-up)
-
General Data
-
Features
