Introduction
Features of Bluesun Stackable Rack LiFePO4 Battery

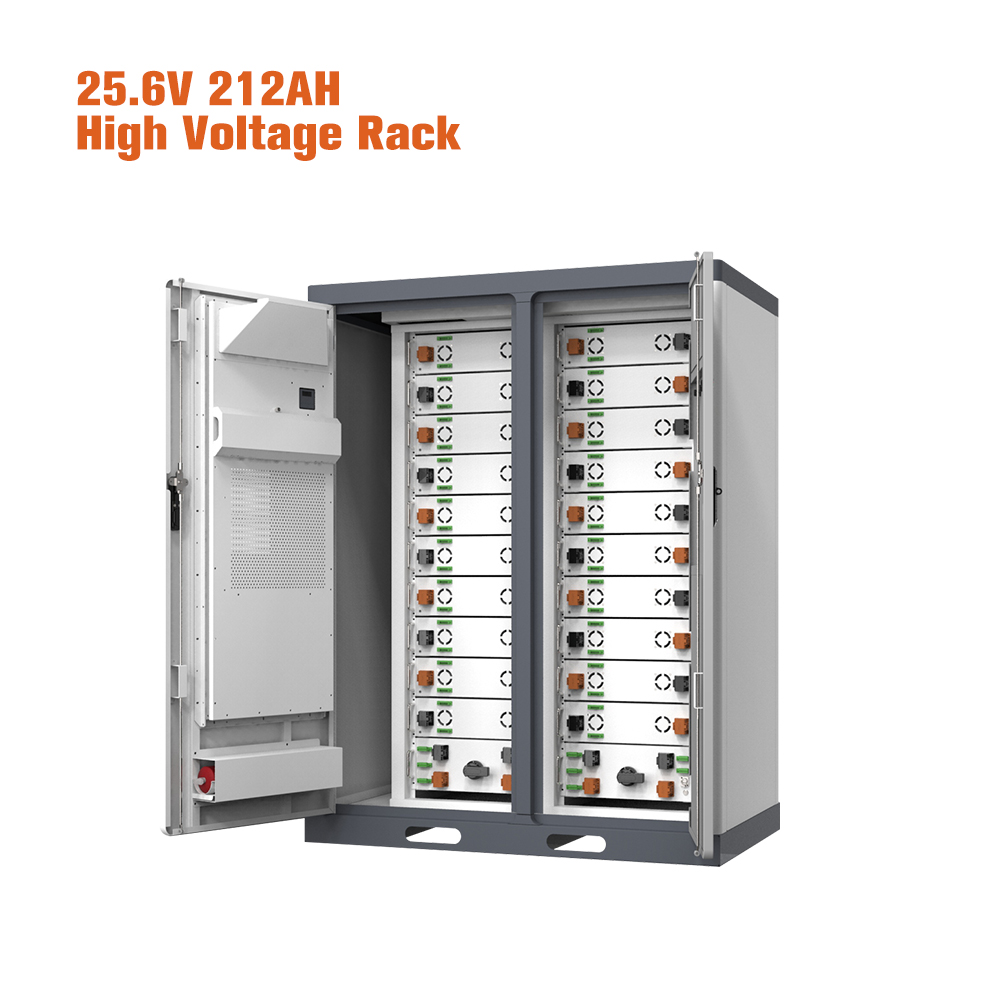

The BSM24212H is especially suitable for high-power applications with limited installation space, restricted load-bearing, and long cycle life requirements. It features a three-level Battery Management System (BMS) that monitors cell information, including voltage, current, and temperature. Additionally, the BMS balances charging and discharging to extend the cycle life. Multiple batteries can be connected in parallel to expand capacity and provide longer power support for larger applications.
The Bluesun LiFePO4 Battery stands out for its high safety performance, long lifespan, wide charge voltage range, and ease of installation thanks to its standard modular design. These batteries are versatile, making them ideal for household energy storage, industrial and commercial applications, and various other fields.
*Modular Design:
Lightweight and compact, ensuring easy handling and installation.
*Long Service Life:
Over 10 years of reliable performance.
*High Compatibility:
Advanced BMS for seamless communication with energy storage inverters.
*Durable Performance:
Suitable for long-term charge and discharge cycles.
Bluesun LiFePO4 batteries deliver a dependable energy solution tailored to meet diverse storage needs.
The bus cabinet serves as the DC-side bus control unit of the energy storage battery system, connecting the high-voltage box and the storage converter. It integrates the power pool system (stack), optional fuses or circuit breakers, a three-level Battery Management System (BMS/ESMU), and a UPS power supply.
The design considers the electrical characteristics, heat dissipation, safety performance, and operational convenience, offering a compact structure, flexible configuration, and high reliability.
The three-level BMS module (ESMU) within the bus cabinet includes CAN, RS-485, and RJ45 Ethernet communication interfaces. These enable seamless communication with the high-voltage box, PCS/UPS, or EMS, supporting data exchange and control for the energy storage battery management system while ensuring robust system protection.
-
BASIC PARAMETERS
- Battery System Capacity (kWh) 5.42* n
- Battery System Voltage (Vdc) 25.6* n
- Battery System Capacity (AH) 212
- Battery Modules Qty. (Optional ) 1~38
- Round-trip efficiency (@1C-rate) 95%
- Dimension (W* D* H,mm) 600*600*150*n
- Communication CANBUS/ModbusRTU/TCP/IP
- Weight (kg) 120 kg +55kg* n
- Operation Life 10+ Years
- Operation Temperature 10~40°C
- Storage Temperature 20~60°C
