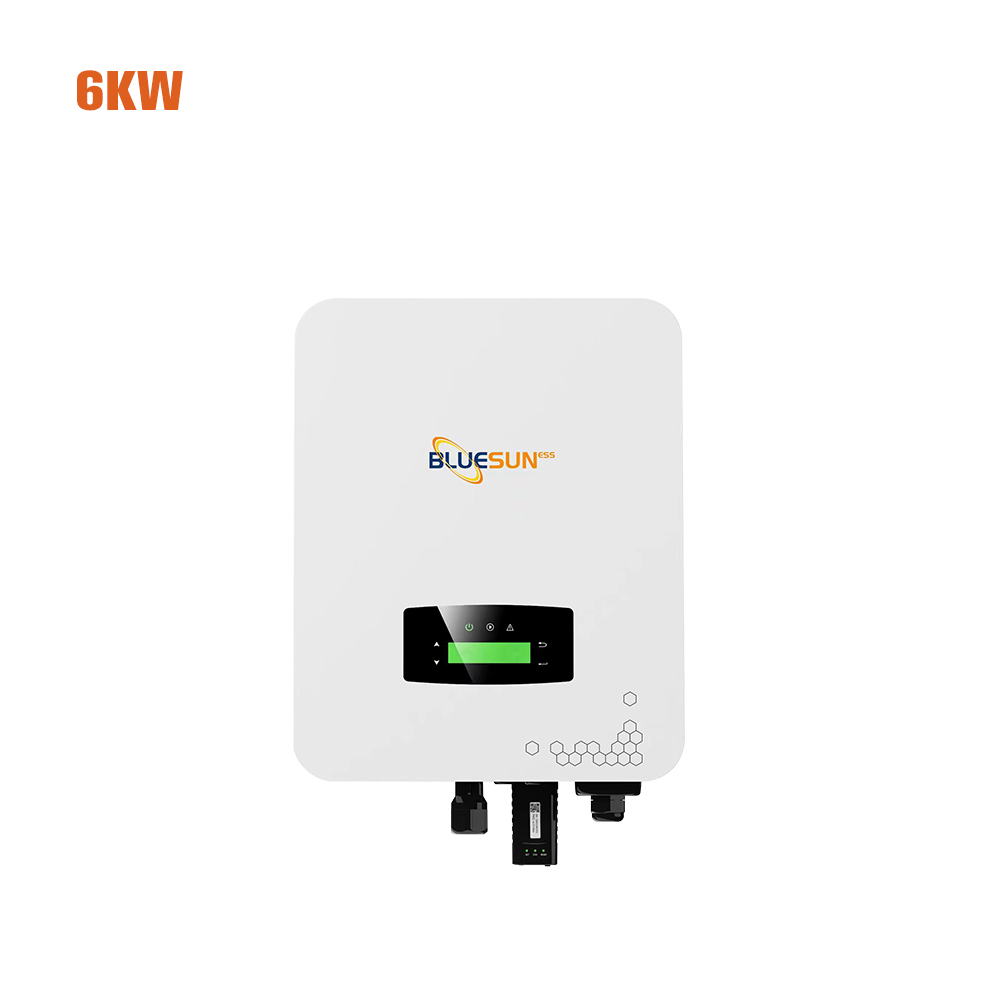

Bluesun Hybrid Solar Inverter 6Kw 48V Single Phase

The Bluesun Hybrid Solar Inverter 6kW is a versatile and compact multi-functional solution, seamlessly integrating an inverter, solar charger, and battery charger into one powerful unit. Designed to provide uninterrupted power supply, this inverter maximizes the efficiency and output of your solar system.
Model: BSE6KL1
Max Power: 6KW
Output Voltage: 220V/230V
Certificate: CE/TUV
Warranty: 5 Years (10 Years Option)
Category:

Product Introduction

6KW hybrid inverter Key Features

The Bluesun Hybrid Solar Inverter 6kW is a versatile and compact multi-functional solution, seamlessly integrating an inverter, solar charger, and battery charger into one powerful unit. Designed to provide uninterrupted power supply, this inverter maximizes the efficiency and output of your solar system.

Ideal for residential and light commercial applications, this hybrid inverter enhances the self-consumption of solar energy, enabling you to achieve greater energy independence and reduce reliance on the grid.During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy can charge a battery. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.

With its advanced features and user-friendly design, the Bluesun Hybrid Solar Inverter is the perfect choice for reliable and efficient energy management.

Product Topology

6kw hybrid inverter Product Topology
Bluesun Hybrid Solar Inverter 6Kw 48V Single Phase

Basic Parameters

  • PV Input
    • Max. Input Power (kW) 9.0
    • Max. PV Voltage (V) 550
    • MPPT Range (V) 80-500
    • Full MPPT Range (V) 170-500
    • Normal Voltage (V) 360
    • Startup Voltage (V) 100
    • Max. Input Current (A) 18.5 x 2
    • Max. Short Current (A) 26 x 2
  • Battery Port
  • AC Grid
  • AC Load Output
  • General Data
