Introduction

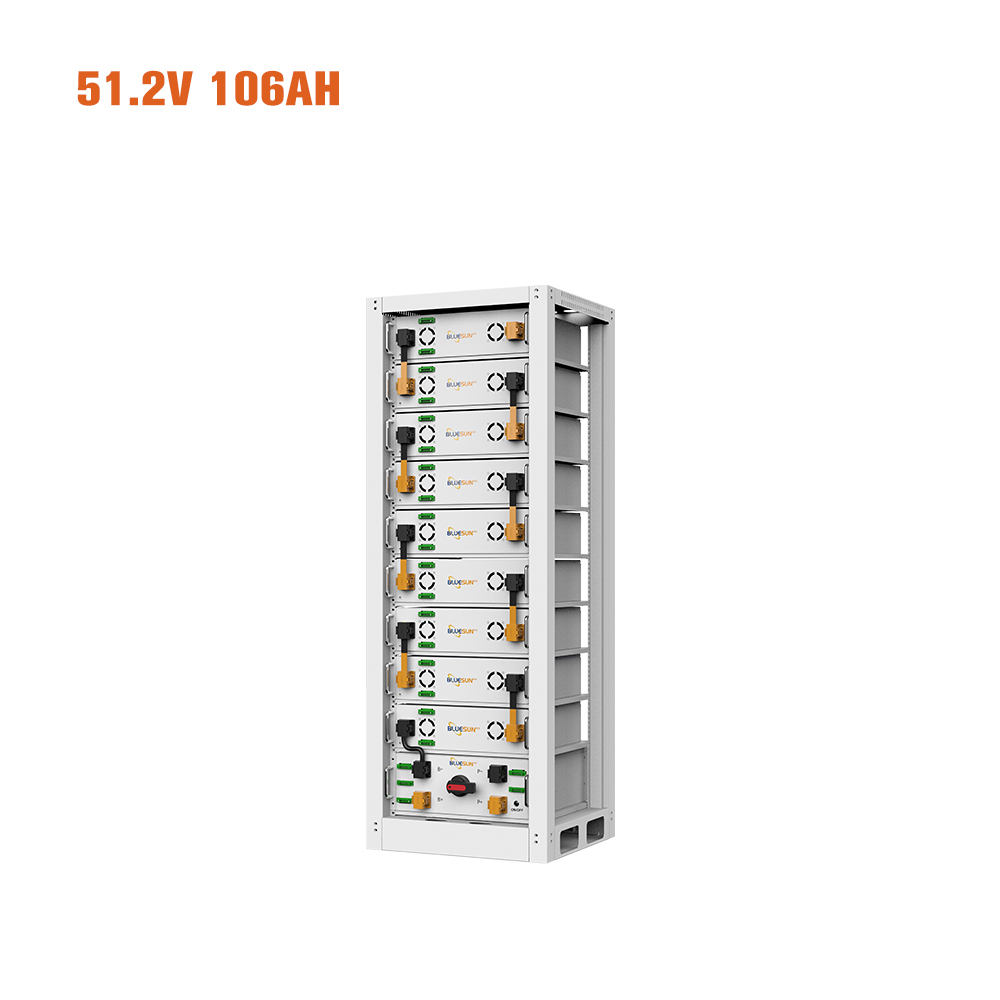

Features of Bluesun HV Battery Cluster LiFePO4 Battery
The BSM48106H features a three-level Battery Management System (BMS) that monitors and manages critical cell information, including voltage, current, and temperature. Additionally, the BMS balances charging and discharging processes to enhance cycle life.
Multiple units can be connected in parallel to increase capacity and power, meeting the requirements for larger systems and extended power support durations.
The Bluesun LiFePO4 Battery stands out for its high safety performance, long lifespan, wide charge voltage range, and ease of installation thanks to its standard modular design. These batteries are versatile, making them ideal for household energy storage, industrial and commercial applications, and various other fields.
*Modular Design:
Lightweight and compact, ensuring easy handling and installation.
*Long Service Life:
Over 10 years of reliable performance.
*High Compatibility:
Advanced BMS for seamless communication with energy storage inverters.
*Durable Performance:
Suitable for long-term charge and discharge cycles.
Bluesun LiFePO4 batteries deliver a dependable energy solution tailored to meet diverse storage needs.
The bus cabinet serves as the DC-side bus control unit of the energy storage battery system, connecting the high-voltage box and the storage converter. It integrates the power pool system (stack), optional fuses or circuit breakers, a three-level Battery Management System (BMS/ESMU), and a UPS power supply.
The design considers the electrical characteristics, heat dissipation, safety performance, and operational convenience, offering a compact structure, flexible configuration, and high reliability.
The three-level BMS module (ESMU) within the bus cabinet includes CAN, RS-485, and RJ45 Ethernet communication interfaces. These enable seamless communication with the high-voltage box, PCS/UPS, or EMS, supporting data exchange and control for the energy storage battery management system while ensuring robust system protection.
-
BASIC PARAMETERS
- Battery System Capacity (kWh) 5.42* n
- Battery System Voltage (Vdc) 51.2* n
- Battery System Capacity (AH) 100
- Battery Modules Qty. (Optional ) 1~19
- Round-trip efficiency (@1C-rate) 95%
- Dimension (W* D* H,mm) 600*600*150*n
- Communication CANBUS/ModbusRTU/TCP/IP
- Weight (kg) 120 kg +55kg* n
- Operation Life 10+ Years
- Operation Temperature 10~40°C
- Storage Temperature 20~60°C
