Low Voltage All in one LiFePO4 Battery 5kwh-30kwh

Built with LFP battery cells that are cobalt-free and environmentally friendly, the BST series ensures maximum safety, extended cycle life, and high power output. Equipped with a smart BMS and an LCD screen, it allows real-time monitoring of the battery’s working status. Designed for versatile use, it supports a wide range of applications, including emergency backup, off-grid systems, and self-consumption optimization for both residential and commercial energy needs.
Battery Type: LiFePo4 Battery
Nominal Capacity: 5~30Kwh
Nominal Voltage: 51.2V
Certification: CE/IEC/UL/UN38.3/MSDS
Design Life: 10 years+
Cycle Life: >6000
Category:
Features of Bluesun Low Voltage Energy Storage Batteries

Features of Bluesun LiFePO4 Battery

The Bluesun LiFePO4 Battery stands out for its high safety performance, long lifespan, wide charge voltage range, and ease of installation thanks to its standard modular design. These batteries are versatile, making them ideal for household energy storage, industrial and commercial applications, and various other fields.

*Modular Design:
Lightweight and compact, ensuring easy handling and installation.

*Long Service Life:
Over 10 years of reliable performance.

*High Compatibility:
Advanced BMS for seamless communication with energy storage inverters.

*Durable Performance:
Suitable for long-term charge and discharge cycles.

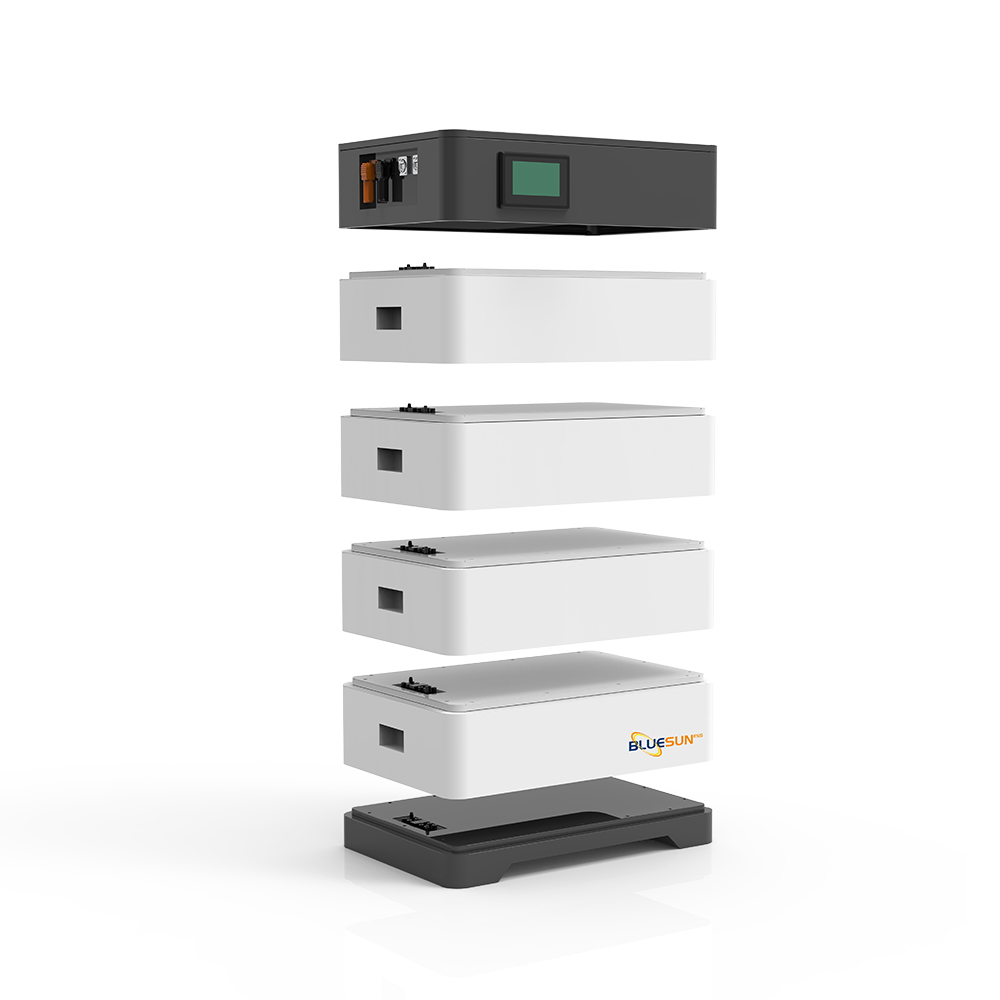

Stacked batteries

Bluesun LiFePO4 batteries deliver a dependable energy solution tailored to meet diverse storage needs.

Performance Parameter

MODEL BST-5.0LV BST-10.0LV BST-15.0LV BST-20.0LV BST-25.0LV BST-30.0LV
Battery Type LiFeP04(LFP)
Nominal Voltage(V) 51.2V
Nominal Capacity(KWH) 5.42KWH 10.85KWH 16.28KWH 21.7KWH 27.13KWH 32.56KWH
UsableCapacity(KWH) 4.87KWH 9.76KWH 14.65KWH 19.53KWH 24.41 KWH 29.30KWH
Design Life 10+Years(25 ℃/77F)
Physical
Dimension(mm) 600*400*385 600*400*534 600*400*683 600*400*832 600*400*981 600*400*1130
Weight (kg) 80 125 170 215 260 305
ELECTRICAL
Cycle Life >6000. 25°C
Discharge Voltage(V) 40-48
Charge Voltage(V) 56 -58.4
Charge/Discharge Current(A) 83 (Recommended) 100A(Max)
Internal Resistance ≤30mΩ
BMS
Power Consumption <2W (Work) < 100mW(Sleep)
Monitoring Parameters System voltage, current, cell voltage,cell temperature, module temperature
SOC Intelligent algorithm
Communication CAN/RS-485/RS-232
OPERATION
Operating Temperature Range -10℃-50℃
Transport or Storage Temperate Range -20℃-45℃
Humidity 15% – 85% (No Condensing)
WARRANTY
Product Warranty 5 Years
Performance Warranty 10 Years
